How do I know what beam capacity my Chicago warehouse needs?

Beam capacity follows your heaviest pallet, not an average. Tell us your pallet dimensions and your worst-case load weight, and we size beams and frames to that with margin built in. Ratings for the finished configuration get handed over so your team can post them on the rack.

Can pushback handle our pallet weights?

Cart and rail assemblies are commonly rated 2,500 to 4,000 lb per pallet, with heavier builds available. We spec to your heaviest load with margin and confirm the pallet footprint and overhang work with the cart nesting before quoting.

Can flow lanes be added into our existing rack?

Sometimes. Frame depth and beam spacing have to accommodate the rail assemblies and the pitch the lane needs. We verify your current structure first and convert only the bays that genuinely fit.

Will our current forklifts fit inside the lanes?

Lane width, rail height, and mast clearance get dimensioned to your specific truck - mast height, overall width, and turning clearance - before anything is drawn. If your trucks won't work safely in a lane, we tell you at the layout stage.

How much weight can each arm carry?

Arm capacity is specified per arm and per column, based on your heaviest bundle and how far the load projects. Give us bundle dimensions and weights and we size arms, columns, and bracing to that with margin - then hand over the ratings for the finished run.

Do soft or lightweight cartons flow well?

Full-width wheel beds handle mixed and flimsy cartons far better than spaced roller tracks. If your cases vary in stiffness, that's the specification we'll recommend, and we test travel with your actual cartons at installation.

Industrial pallet racks and warehouse racking systems

Pallet Rack Systems for Chicagoland Warehouses

Name: Chicago Pallet Racks
Address: 36 N. Cass Ave., Westmont, IL, 60559, US
Telephone: (312) 815-2445
Price range: $$

Chicagoland runs on storage. From the intermodal big boxes of Joliet, Elwood, Romeoville, and Bolingbrook to the older multi-tenant buildings of Elk Grove Village, Franklin Park, Bedford Park, and Cicero, we supply and install every major type of warehouse racking: pallet rack for full access to each position, pushback and drive-in rack when you need depth, pallet flow for FIFO rotation, cantilever for long loads, and carton flow for case picking.

The right system depends on your SKUs, your clear height, and how fast product turns. Pick the system below that matches how your product moves, or call (312) 815-2445 and we will narrow it down with you in one conversation.

(312) 815-2445

Our Warehouse Racking Products

Six systems cover almost every storage problem we see in Chicago and the surrounding suburbs. Most buildings end up using two of them together.

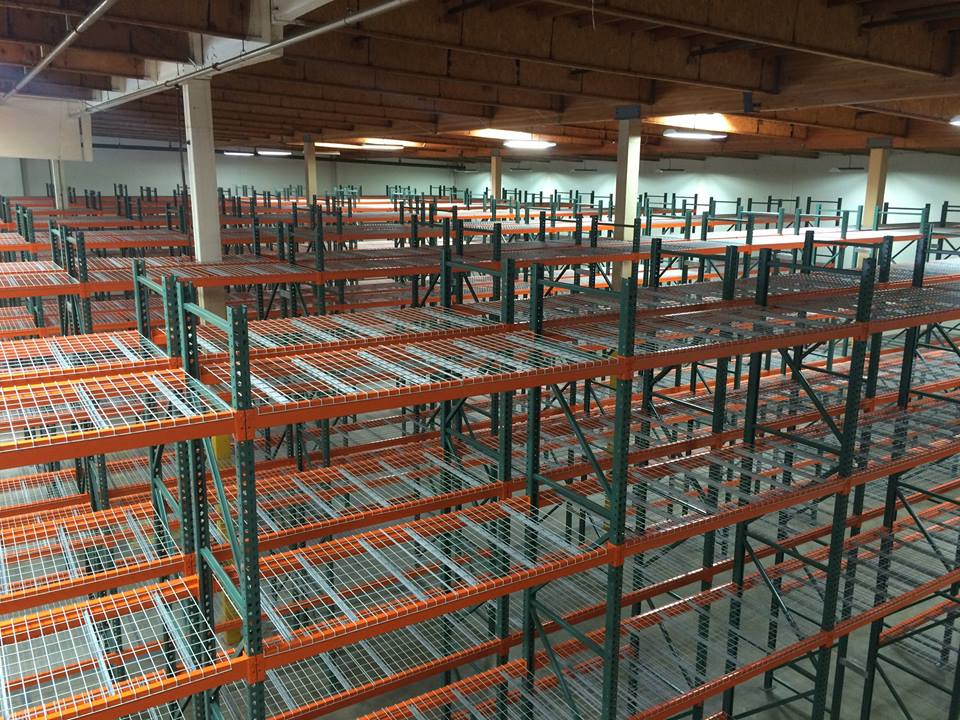

Pallet Rack

Also called selective pallet rack

Every pallet reachable, every time. The baseline we size everything else against.

See details

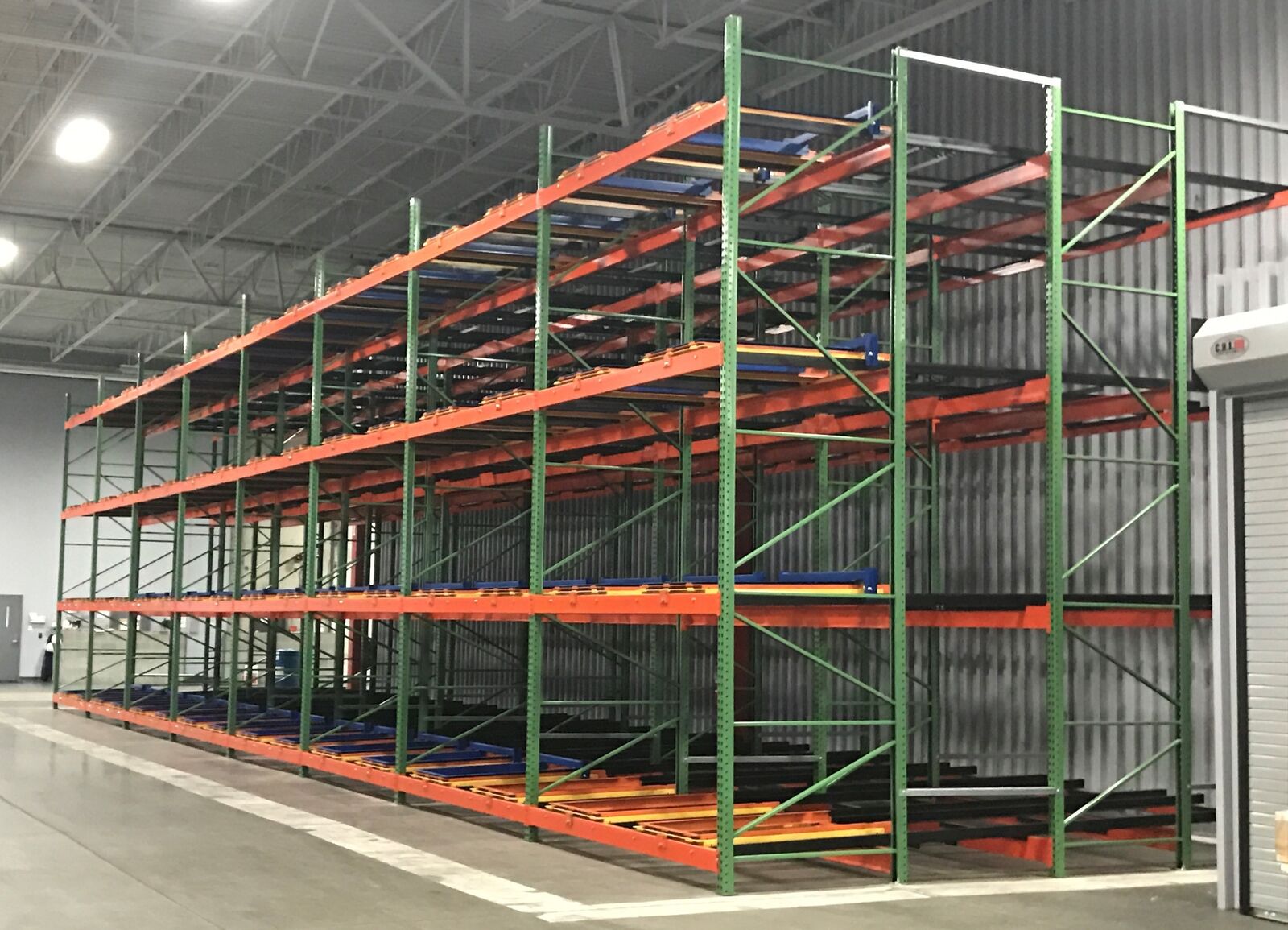

Pushback Rack

Also called push back pallet rack system

Two to six pallets deep from one aisle, without giving up much reach.

See details

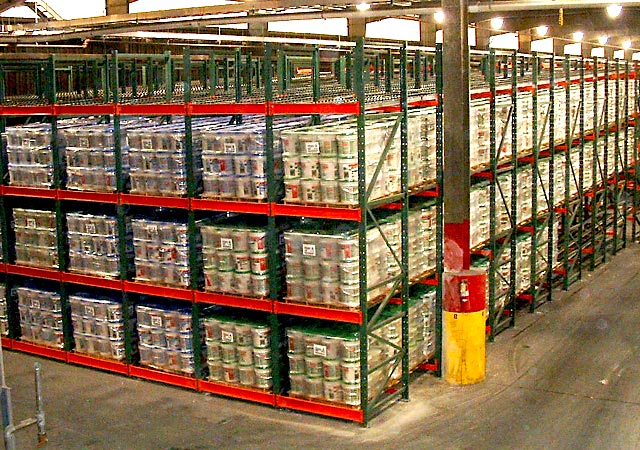

Pallet Flow Rack

Also called flow through racking

Load one side, pick the other, and let gravity enforce first in, first out.

See details

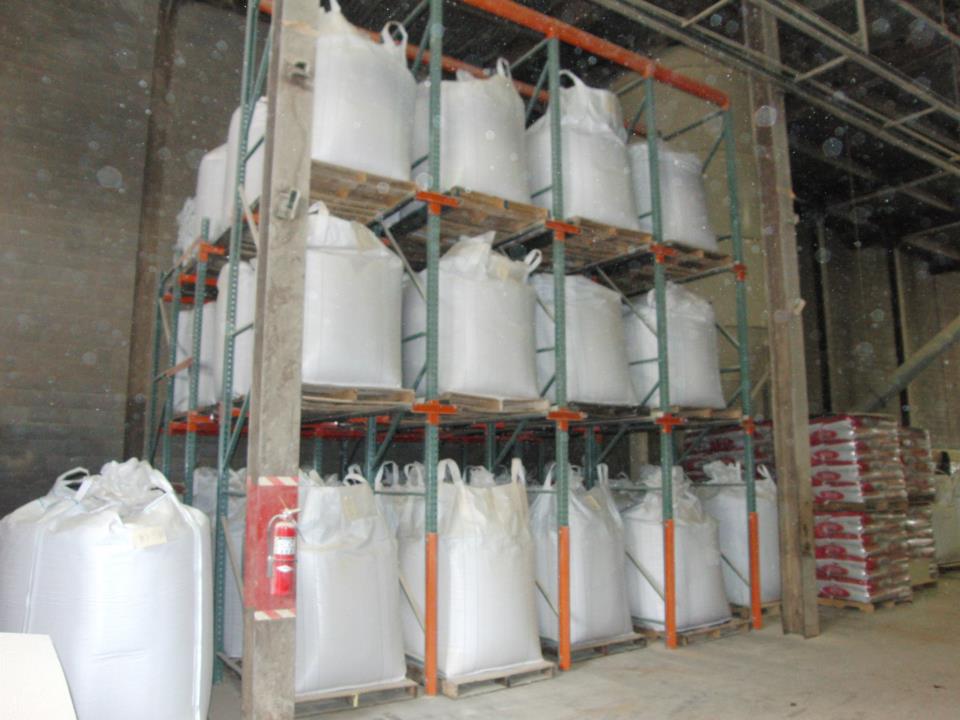

Drive-In Rack

Also called drive through pallet racking

No aisles. The forklift enters the structure, and the floor holds more pallets per square foot than any other system.

See details

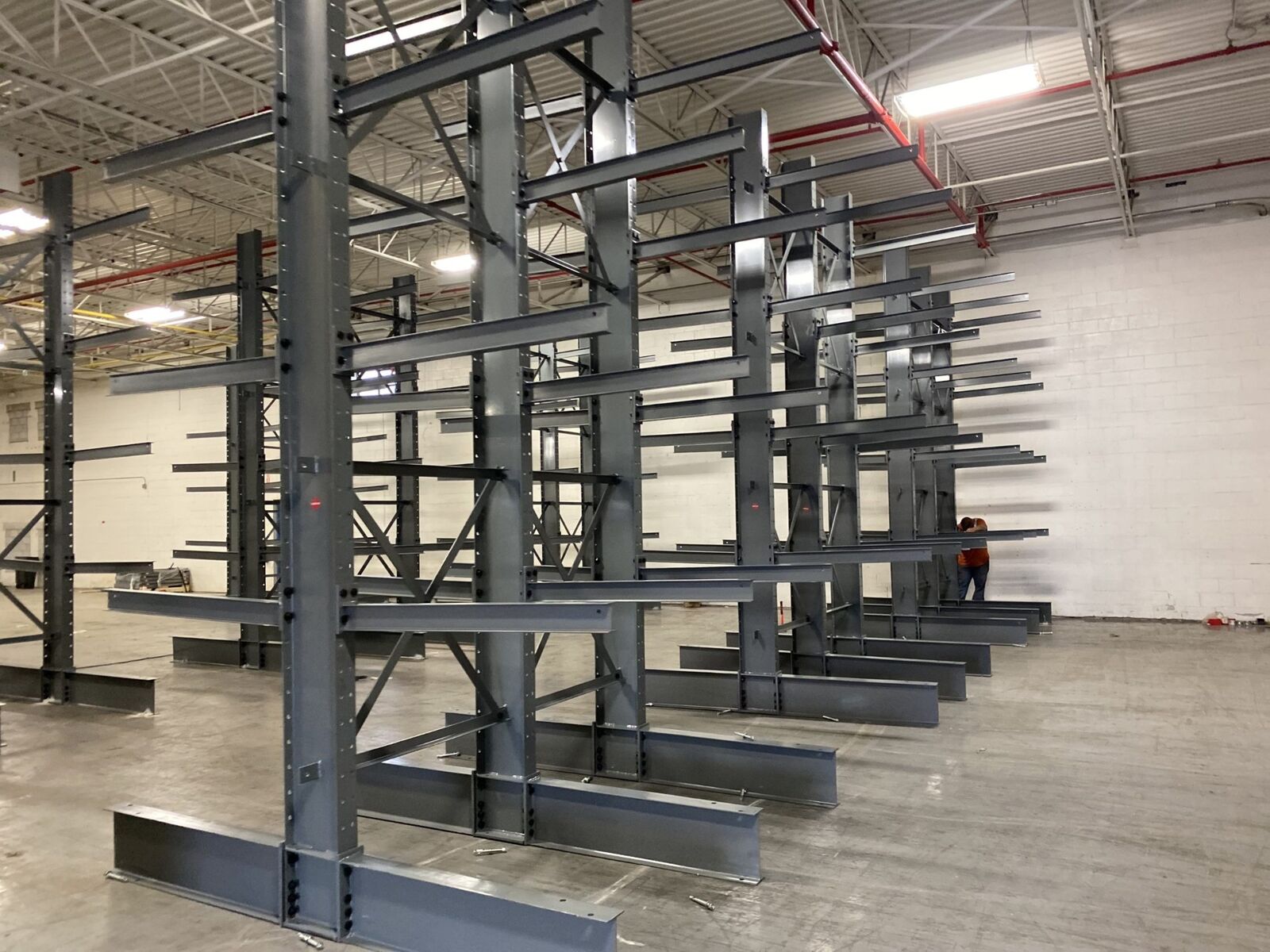

Cantilever Rack

Also called cantilever warehouse racking

Arms with nothing in front of them, built for lumber, pipe, and anything a pallet can't hold.

See details

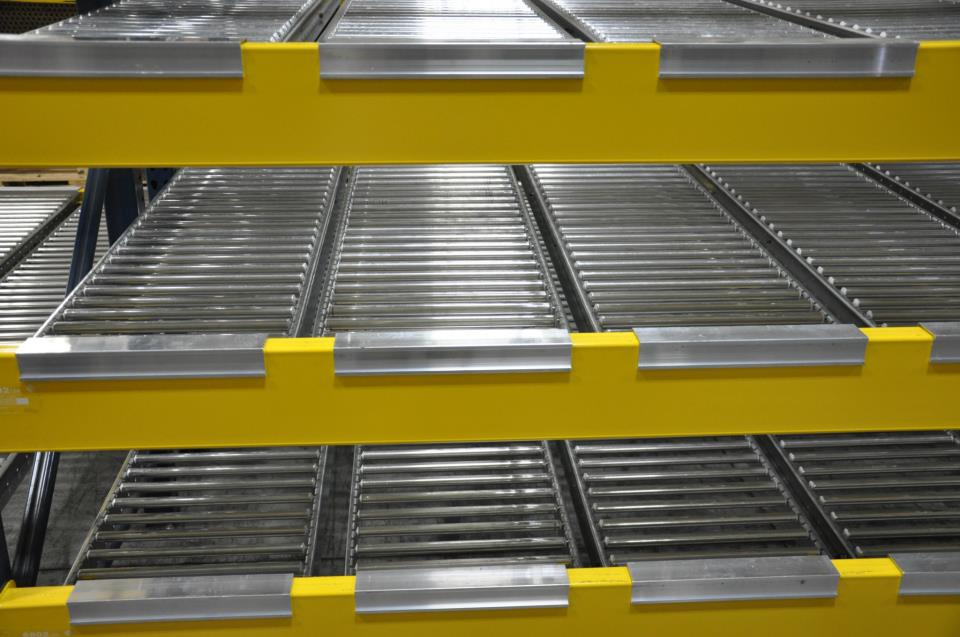

Carton Flow Rack

Also called carton flow shelving

Cases advance to the picker instead of the picker hunting for cases.

See details

Choosing Between Rack Types

Four things decide the answer: how many SKUs you carry, how many pallets you hold of each one, how fast product turns, and how much height the building gives you.

Many SKUs with a pallet or two each point to selective pallet rack. Several pallets of the same item favor pushback. Date-driven rotation calls for pallet flow. Large volumes of a few items in a tight footprint suit drive-in. Long material needs cantilever, and case picking needs carton flow.

Free warehouse consultation

CAD layout with pallet position counts

Installation by our own crews

One local contact from layout to punch list
